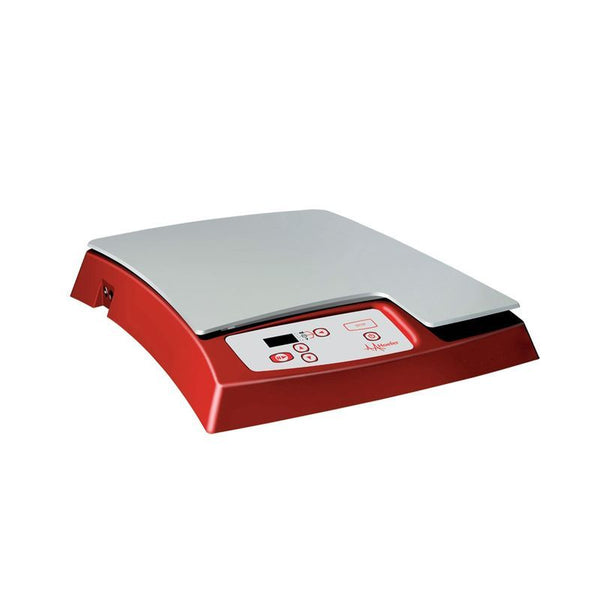

TE77XP SEMIDRY BLOTTER,HINC

The TE70XP and TE77XP semi-dry transfer units electrotransfer proteins from polyacrylamide gels onto membranes (either nitrocellulose or PVDF) rapidly and efficiently. Their unique design includes an intelligent built-in power supply which automatically monitors the transfer status, stopping the transfer before the stack overheats.

The Semi-Dry Transfer Units support as many as two layers of gels being transferred simultaneously. The TE70XP has a 14 x 16 cm maximum transfer area which can handle up to four mini gels using the stacked format. The TE77XP has a 21 x 26 cm transfer area for a capacity of up to 12 mini gels at one time.

Features & Benefits:

• Intelligent built-in power supply—prevents the stack from overheating by monitoring the transfer status
• Requires minimal current—does not generate excessive heat that can dry out the transfer stack and halt transfer or damage transfer units
• Durable iridium oxide and stainless steel electrodes—allow for contamination free, consistent transfer
• Vented electrodes—prevent build up of bubbles which may impair transfer
• Minimal buffer requirements—reagent cost and preparation time are reduced

All units have:

• Molded Base with Platinum-Coated Titanium Anode and Internal Power Supply
• Hinged Lid with Stainless Steel Cathode

The TE70XP includes:

• Blotting Paper (14 x 16 cm), 25 sheets
• Porous Cellophane (20 x 35.5 cm), 50 sheets
• Mylar® Masks (16.5 x 18.5 cm), 2 pcs

The TE77XP includes:

• Blotting Paper (21 x 26 cm), 25 sheets
• Porous Cellophane (20 x 35.5 cm), 50 sheets
• Mylar® Masks (23 x 27.5 cm), 2 pcs

Specifications:
