Product Name
TE62 TRANSPHOR W/COOLING BASE
Brand Name
Hoefer
Product Number
TE62
Product Added to Cart!
$1,710.00
Available on backorder. No lead time available. Please request a quote.
Sku S48TE62_1_PAK
Hoefer
Product Information
Description

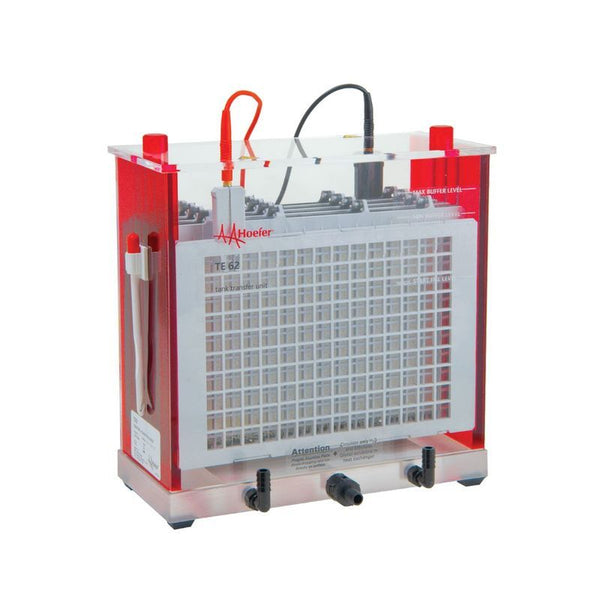

TE62 Standard Transfer Tank with Cooling Chamber quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes while providing excellent temperature control.
The TE62 is designed to accept up to four cassettes simultaneously with cooling. Each cassette holds a 15 x 21 cm gel, or as many as four 7 x 10 cm mini gels.
Features & Benefits:
- Uniform and strong electric field—supports efficient and even transfers
- Color-coded, easy to assemble cassettes—ensures proper orientation during transfer
- Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
- Built-in ceramic heat exchanger—provides excellent temperature control when used with an external cooling water bath
Includes:
- Lower Chamber with Heat Exchanger
- Safety Lid with High Voltage Leads
- Electrode Panels, 2 pcs
- Cassettes, 4 pcs
- Foam Sponges, 6 mm thick, 4 pcs
- Foam Sponges, 3 mm thick, 8 pcs
- Cassette Hook
- Blotter Paper (14.5 x 21.5 cm), 25 sheets
Specifications:
| Capacity | Up to four 15 x 21 cm gels Up to sixteen 7 x 10 cm gels |
| Maximum Power Settings | 100 V, 2 A, 200 W |
| Maximum Temperature | 45°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x H x D) | 28 x 16.5 x 32 cm |
| Unit Weight | 5.40 kg |
TE22 vs TE42 vs TE62:
TE22 Mighty Small Transfer Tank
Transfers as many as four small gels, up to 9 x 10 cm in less than an hour
Built-in alumina-covered cooling channel provides excellent temperature control with no more than a 5°C temperature increase during a typical run
TE42 Standard Transfer Tank
Up to four 15 x 21 cm gels (without cooling); Up to two 15 x 21 cm gels (with cooling)
Optional TE47 heat exchanger‒provides excellent buffer temperature control when used with an external cooling water bath.
TE62 Standard Transfer Tank with Cooling Chamber
Up to four 15 x 21 cm gels or sixteen 7 x 10 cm gels
Built-in ceramic heat exchanger‒provides excellent temperature control when used with an external cooling water bath
