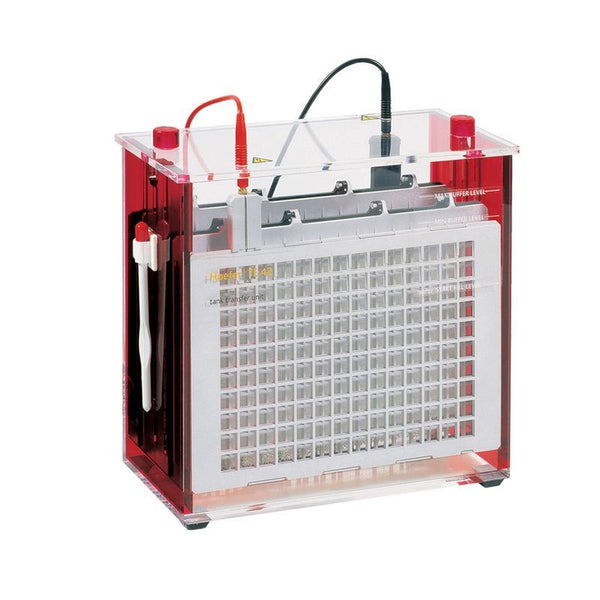

TE42 COMPLETE

The TE42 Standard Transfer Tank quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes.

The four slot design of the TE42 enables either cooled or non-cooled protein or nucleic acid transfers. The optional heat exchange module is easily incorporated into the TE42 enabling transfer of up to 2 gels simultaneously. When used without the optional heat exchange module, up to four gels can be transferred at one time.

Features & Benefits:

• Uniform and strong electric field—supports efficient and even transfers
• Color-coded, easy to assemble cassettes—ensures proper orientation during transfer
• Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
• Optional TE47 heat exchanger—provides excellent buffer temperature control when used with an external cooling water bath
• Heat exchanger from an SE600 series electrophoresis unit can be substituted for the TE47 heat exchanger.

Includes:

• Lower Chamber
• Safety Lid with High Voltage Leads
• Electrode Panels, 2 pcs
• Cassettes, 2 pcs
• Foam Sponges, 6 mm thick, 2 pcs
• Foam Sponges, 3 mm thick, 4 pcs
• Cassette Hook
• Blotter Paper (14.5 x 21.5 cm), 25 sheets

Specifications:

TE22 vs TE42 vs TE62:

TE22 Mighty Small Transfer Tank

Transfers as many as four small gels, up to 9 x 10 cm in less than an hour

Built-in alumina-covered cooling channel provides excellent temperature control with no more than a 5°C temperature increase during a typical run

TE42 Standard Transfer Tank

Up to four 15 x 21 cm gels (without cooling); Up to two 15 x 21 cm gels (with cooling)

Optional TE47 heat exchanger‒provides excellent buffer temperature control when used with an external cooling water bath.

TE62 Standard Transfer Tank with Cooling Chamber

Up to four 15 x 21 cm gels or sixteen 7 x 10 cm gels

Built-in ceramic heat exchanger‒provides excellent temperature control when used with an external cooling water bath
