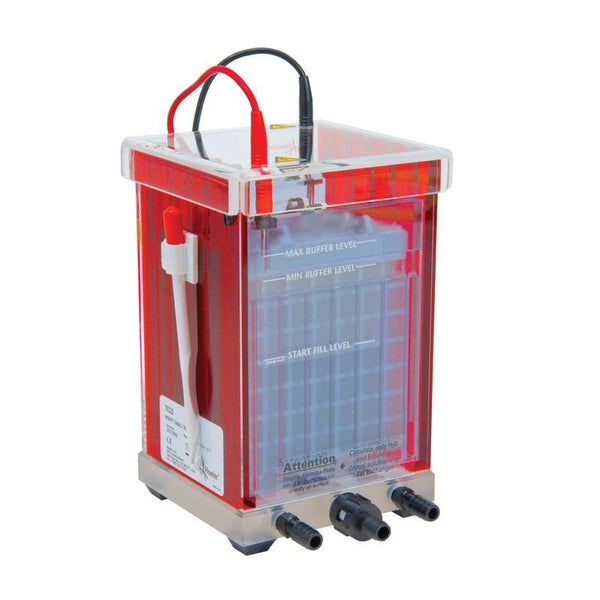

TE22 MIGHTY SMALL TK TRANSFER

The TE22 Mighty Small Transfer Tank quickly and efficiently transfers proteins and nucleic acids from small gels to nylon, nitrocellulose or PVDF membranes. Maximum Gel Size 9 x 10 cm.

Features and Benefits

• Transfer as many as four small gels, up to 9 x 10 cm in less than an hour
• Uniform and strong electric field—supports efficient and even transfers
• Color-coded, easy to assemble and load cassettes—ensures proper orientation during transfer
• Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
• Built-in ceramic heat exchanger—provides excellent temperature control when used with an external cooling water bath
• Built-in alumina-covered cooling channel provides excellent temperature control with no more than a 5°C temperature increase during a typical run

Includes:

• Lower Chamber with Heat Exchanger
• Safety Lid with High Voltage Leads
• Electrode Panels, 2 pcs
• Cassettes, 4 pcs
• Foam Sponges, 6 mm thick, 4 pcs
• Foam Sponges, 3 mm thick, 8 pcs
• Cassette Hook
• Blotter Paper (9 x 10.5 cm), 25 sheets

Specifications:

TE22 vs TE42 vs TE62:

TE22 Mighty Small Transfer Tank

Transfers as many as four small gels, up to 9 x 10 cm in less than an hour

Built-in alumina-covered cooling channel provides excellent temperature control with no more than a 5°C temperature increase during a typical run

TE42 Standard Transfer Tank

Up to four 15 x 21 cm gels (without cooling); Up to two 15 x 21 cm gels (with cooling)

Optional TE47 heat exchanger‒provides excellent buffer temperature control when used with an external cooling water bath.

TE62 Standard Transfer Tank with Cooling Chamber

Up to four 15 x 21 cm gels or sixteen 7 x 10 cm gels

Built-in ceramic heat exchanger‒provides excellent temperature control when used with an external cooling water bath
