Product Name
HORIZONTAL SUB UNIT- 10X11.5
Certificate of Analysis (COA)

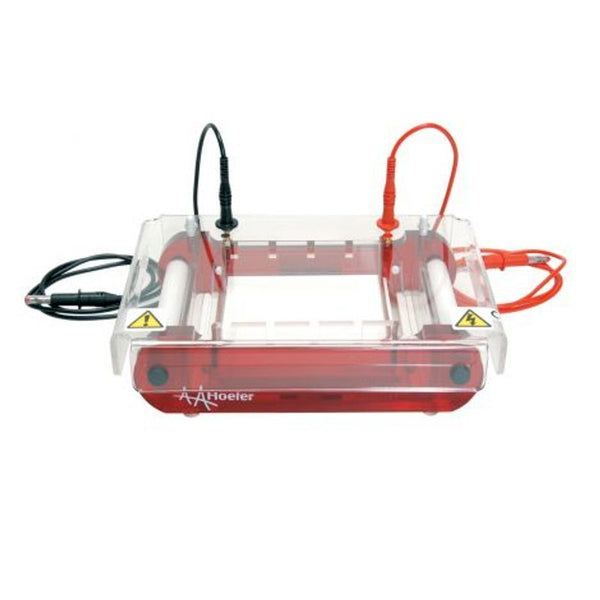

The SUB10 Mini Horizontal Gel Unit is ideal for routine nucleic acid preparatory and analytical electrophoresis techniques. It has a maximum 80-sample throughput capacity and features a removable gel casting tray with end gaskets that allow gels to be cast directly within the tank.
Welcome to click on YouTube to watch in full screen.
Features and Benefits
- Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
- Colored loading strips—for easy well detection when loading
- Compact tank—reduces the buffer volume required to cover the gel,providing greater control over the voltage gradient and run-time
- UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
- Side handles—for safe and easy transportation around the laboratory
Includes:
- Buffer Chamber Assembly
- Safety Lid
- High Voltage Leads
- Running Tray with Silicone Gasket*
- 1 mm thick, 16-well combs, 2 pcs
- Colored Loading Strips
* The included running tray is lined with silicone gaskets which form a leak-proof seal against the inner walls of the running chamber when the running tray is turned 90° to the direction of electrophoresis.
Specifications:
| Gel Dimensions (W x L) |
10 x 11.5 cm
|
Maximum Buffer Volume
|
450 ml
|
Maximum Power Settings
|
300 V, 200 mA, 60 W
|
Maximum Sample Capacity
|
80
|
Maximum Running Temperature
|
45°C
|
Indoor Use
|
4 to 40°C
|
Humidity
|
Up to 80%
|
Unit Dimensions (W x L x H)
|
16.5 x 23 x 6.5 cm |
| Unit Weight |
1.70 kg |
Product Update:
- Effective immediately, SUB Series tanks are available in green and gray, in addition to our standard Hoefer red.
- This change is cosmetic only—the tank design, structural components, included accessories, and performance remain exactly the same.
- Please note that SUB units will be shipped in a randomly selected color. We appreciate your understanding and continued support.
