All combs require HE91-BK comb back ordered separately.
Preparative combs have 1 preparative well and 2 reference wells.
Sample volume listed is for a 5 mm deep well
Item# |
Description |
| HE91A-P-1.5 | HE99X Comb (1/2 Wells, 1.5 mm Thickness, 113/10 mm Well Width, 885/72.5 μl Sample Volume) |
| HE91A-P-3.0 | HE99X Comb (1/2 Wells, 3 mm Thickness, 113/10 mm Well Width, 1710/145.5 μl Sample Volume) |
| HE91A-10-1.5 | HE99X Comb (10 Wells, 1.5 mm Thickness, 9.7 mm Well Width, 72.5 μl Sample Volume) |
| HE91A-10-3.0 | HE99X Comb (10 Wells, 3 mm Thickness, 9.7 mm Well Width, 145.5 μl Sample Volume) |
| HE91A-15-1.0 | HE99X Comb (15 Wells, 1 mm Thickness, 7.1 mm Well Width, 35.5 μl Sample Volume) |

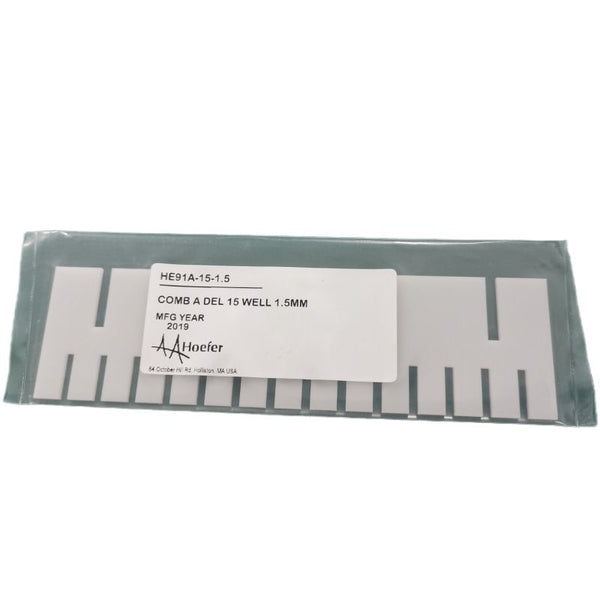

| HE91A-15-1.5 | HE99X Comb (15 Wells, 1.5 mm Thickness, 7.1 mm Well Width, 53.5 μl Sample Volume) |
| HE91A-15-3.0 | HE99X Comb (15 Wells, 3 mm Thickness, 7.1 mm Well Width, 106.5 μl Sample Volume) |
| HE91A-20-1.0 | HE99X Comb (20 Wells, 1 mm Thickness, 4.7 mm Well Width, 23.5 μl Sample Volume) |
| HE91A-20-1.5 | HE99X Comb (20 Wells, 1.5 mm Thickness, 4.7 mm Well Width, 35.5 μl Sample Volume) |
| HE91A-20-3.0 | HE99X Comb (20 Wells, 3 mm Thickness, 4.7 mm Well Width, 70.5 μl Sample Volume) |
| HE91A-30-1.0 | HE99X Comb (30 Wells, 1 mm Thickness, 3 mm Well Width, 15 μl Sample Volume) |
| HE91-BK | HE99X Comb Back and Two Screws |
