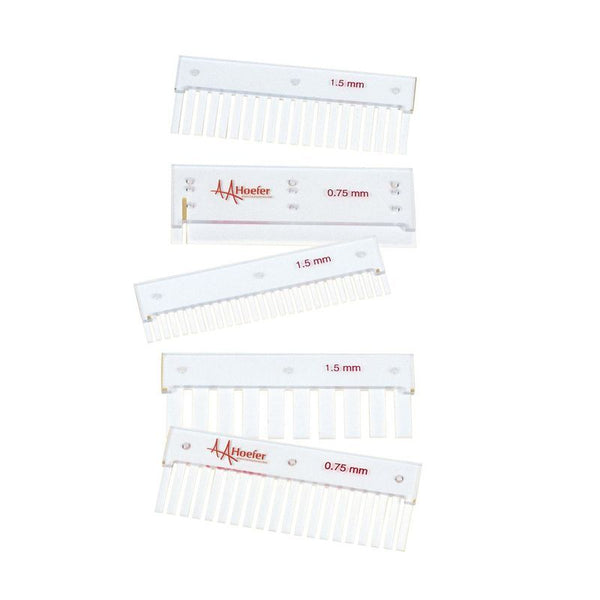

Our combs are precision machined from Teflon® which is highly resistant to acids, bases, and all commonly used buffer systems. An important benefit of Teflon combs, compared to other types, is that they are easily removed while maintaining gel integrity. They are lightweight and virtually unbreakable when used with reasonable care. Some comes have microtiter spacing for use with multi-channel pipettes. (See Specifications.)
Standard Combs come attached to a standard back, which produces maximum well depths of 25 mm, except for the 28-well combs which produce well depths of 15 mm. 15-well Standard Combs have microtiter spacing for use with multichannel pipettes.
Preparative Combs have adjustable comb backs (10, 15, and 25 mm depth) and form 1 large preparative well plus 1 or 2 small reference wells.
| Item# | Description |
| SE511-10-.75 | Standard Comb, 10 Wells, 0.75 mm Thickness, 8.3 Width, 6.2 Volume |
| SE511-10-1.0 | Standard Comb, 10 Wells, 1 mm Thickness, 8.3 Width, 8.3 Volume |
| SE511-10-1.5 | Standard Comb, 10 Wells, 1.5 mm Thickness, 8.3 Width, 12.4 Volume |
| SE511-12-.75 | Standard Comb, 12 Wells, 0.75 mm Thickness, 7.6 Width, 5.8 Volume |
| SE511-12-1.0 | Standard Comb, 12 Wells, 1 mm Thickness, 7.6 Width, 7.7 Volume |
| SE511-12-1.5 | Standard Comb, 12 Wells, 1.5 mm Thickness, 7.6 Width, 11.5 Volume |
| SE511-15-.75 | Standard Comb, 15 Wells, 0.75 mm Thickness, 5.7 Width, 4.3 Volume with Microtiter Spacing |
| SE511-15-1.0 | Standard Comb, 15 Wells, 1 mm Thickness, 5.7 Width, 5.7 Volume, with Microtiter Spacing |
| SE511-15-1.5 | Standard Comb, 15 Wells, 1.5 mm Thickness, 5.7 Width, 8.6 Volume, Microtiter Spacing |
| SE511-20-.75 | Standard Comb, 20 Wells, 0.75 mm Thickness, 4.1 Width, 3.1 Volume |
| SE511-20-1.0 | Standard Comb, 20 Wells, 1 mm Thickness, 4.1 Width, 4.1 Volume |
| SE511-20-1.5 | Standard Comb, 20 Wells, 1.5 mm Thickness, 4.1 Width, 6.2 Volume |
| SE511-28-1.0 | Standard Comb, 28 Wells, 1 mm Thickness, 2.7 Width, 2.7 Volume |
| SE511-28-1.5 | Standard Comb, 28 Wells, 1.5 mm Thickness, 2.7 Width, 4.1 Volume |
| SE511-R-.75 | Preparative Comb, 1/1 Wells, 0.75 mm Thickness, 121/6 mm Width, 90/4 μl/mm Volume |
| SE511-R-1.0 | Preparative Comb, 1/1 Wells, 1.0 mm Thickness, 121/6 mm Width, 120/6 μl/mm Volume |
| SE511-R-1.5 | Preparative Comb, 1/1 Wells, 1.5 mm Thickness, 121/6 mm Width, 183/9 μl/mm Volume |
| SE511-DR-.75 | Preparative Comb, 1/2 Wells, 0.75 mm Thickness, 113/6 mm Width, 85/4 μl/mm Volume |
| SE511-DR-1.0 | Preparative Comb, 1/2 Wells, 1.0 mm Thickness, 113/6 mm Width, 112/6 μl/mm Volume |
| SE511-DR-1.5 | Preparative Comb, 1/2 Wells, 1.5 mm Thickness, 113/6 mm Width, 171/9 μl/mm Volume |
| SE511-BKA | Adjustable Comb Back (Converts 25 mm deep comb to 10 or 15 mm depth) |
