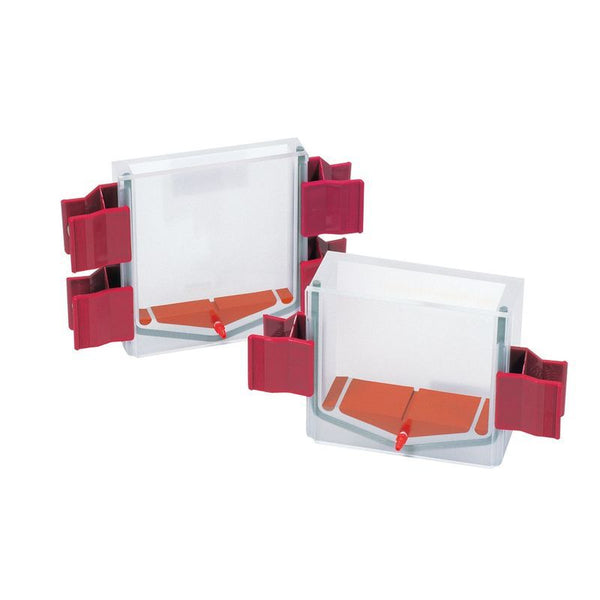

Product Name
SE215 COMPLETE
Certificate of Analysis (COA)
Description
Hoefer gel casters enable several gradient or homogenous gels to be cast simultaneously.
Multiple-Gel Casters
-
Pour uniform gels from the top; pump gradient gels into an inlet port at
the bottom of the unit
-
Sandwiches fill at the same time at the same rate from the same solution.
The result: identical gels.
-
Glass plate sandwiches seal leak free without the use of messy grease or tape
-
Once cast, gels can be wrapped in plastic and refrigerated for several weeks
Ordering Information
Cat. #
|
Description
|
SE215
|
Ten Gel Caster for 10 x 8 cm plates
Includes: 10 x 8 cm Rectangular Glass Plates–20 pcs
10 x 8 cm Notched Alumina Plates–10 pcs
Spring Clamps–2 pcs
|
SE275
|
Four Gel Caster for 10 x 8 cm plates
Includes: 10 x 8 cm Rectangular Glass Plates–10 pcs
10 x 8 cm Notched Alumina Plates–4 pcs
Spring Clamps–2 pcs
|
SE235
|
Four Gel Caster for 10 x 10.5 cm plates
Includes: 10 x 10.5 cm Rectangular Glass Plates–5 pcs
10 x 10.5 cm Notched Alumina Plates–4 pcs
Spring Clamps–4 pcs
|
All three above include:
- Caster Body with Gasket
- Face Plate with Inlet Port
- Rectangular Glass Plates–size and qty varies
- Notched Alumina Plates–size and qty varies
- Spring Clamps–qty varies
- Wax Paper–100 sheets
- Space-Saver Plate
- Polycarbonate Filler Sheets–5 pcs
- Black Vinyl Cap
- Filler Plug Set
Order combs and spacers separately.
Dual-Gel Caster (SE245)
- Cast one or two gels
- Accommodates both 10 x 8 cm and 10 x 10.5 cm plates
- Uses the same rugged and effective clamp/cam casting method as used with the SE Standard (400 and 600) Series casters
The Dual-Gel Caster includes:
- Casting Cradle
- Casting Clamp Assemblies, 2 pcs
- Sealing Gasket Set
- Cams, 4 pcs
Order glass plates, combs, and spacers separately.
